Brief Introduction
The wireless solar networking signal controller is designed according to the GB25280-2016 protocol standard. The system uses a high-performance ARM Cortex 32- bit micro control unit. High-performance LoRa spread-spectrum communication is used between the master and slave devices. Each device has overload protection and under- voltage protection function, integrated high-precision real-time clock chip to ensure the correct implementation of the program, integrated GPS / Beidou chip to achieve positioning and timing functions, while supporting car special service and remote platform access, the system abandons the traditional cumbersome button setting method, using simple and efficient PC/mobile APP configuration port.
Product Specification
Stand-alone power consumption | ≤2W |
Product Size | 18*15 cm |
Product weight | 1KG /PC |
Working voltage | DC12-24V |
Operating temperature | -40 ° C to +70 ° C |
Clock error | <±5ppm |
Data interface | 1 *RS232, 1* RS485, 1* RJ45 |
Parameter saving during power failure | 10 years |
Effective transmission distance | ≤2W |
2 Product Features
Support GPS timing and positioning;
Support WIFI connection, parameter configuration of signal machine through mobile APP or computer client, intuitive and visual parameter configuration software;
The system supports up to 16 independent light groups with 52 outputs (single unit supports 5 independent light groups and 13 outputs), and each output light group can be independently configured;
Signal panel LED indicator, which can display the status of each signal output and signal running status, wireless data transmission status, GPS signal status, etc. in real time.
Equipped with RJ45 and RS232 hardware interfaces, supporting TCP/IP Ethernet communication protocol;
Functional modular design, easy to configure and easy to maintain;
Support 20 day programs, 24 time slots per day plan;
Support 40 holiday special day configurations;
Support independent configuration of green flash, yellow light, full red time;
Support remote network control, timing, manual control, special control, phase time adjustment, etc. for the signal;
Supports automatic security functions such as green conflict degradation control, low voltage protection degradation control, wireless communication signal loss and degradation control;
Master-slave communication uses high-performance LoRa spread spectrum and high- efficiency cyclic interleaving error correction coding to improve anti-interference ability and sensitivity, and the transmission distance and penetration capability are more than doubled compared with traditional single-frequency communication.
Support wireless car / hand held special control function;
Support multiple control modes such as multi-period fixed cycle, coordinated green wave, induction control, single point optimization control;

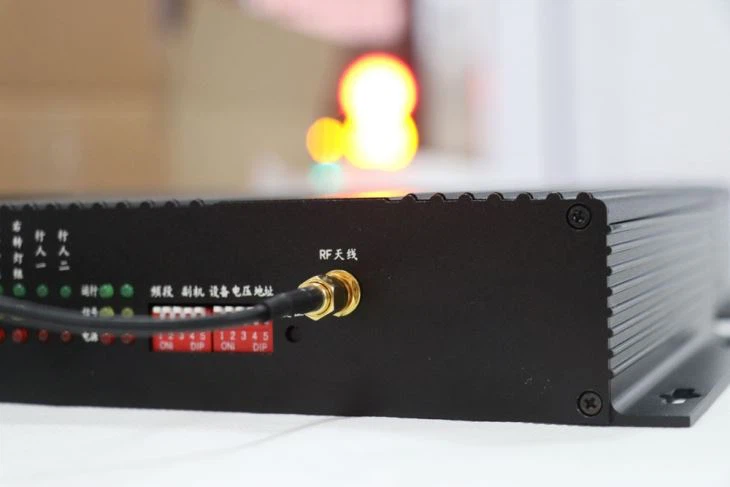

Product Details
