PORTABLE LED ROAD TRAFFIC INFORMATION DISPLAY
Front view after folding
①Telescopic rod ②Damping shaft ③Clamp switch ④Expand switch ⑤Universal wheel
Different Views

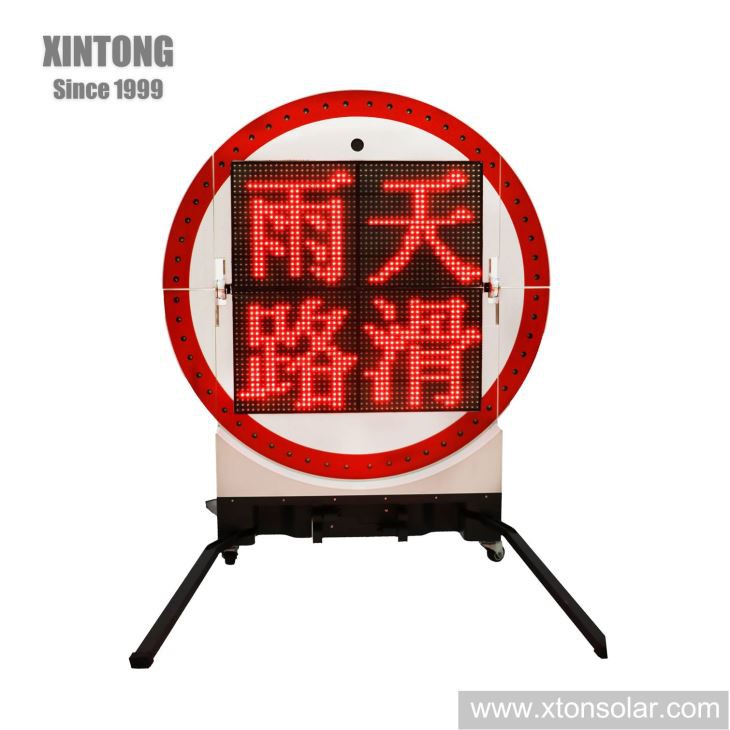

Front view
①Video recorder ②LED screen ③Folding fan ④Outrigger
Detail
①Control button ②Detachable battery
Features
Portable, with four moving wheels for easy movement anywhere.
Foldable LED display, small footprint, easy storage, and easy to carry.
Multiple buttons to meet the different needs of different groups of people for signage.
Removable battery, not only convenient for charging, but also easy to install, more safe and environmentally friendly
Review
The portable LED road traffic information display adopts a professional long-range high-brightness LED light array screen, which can switch between displaying different patterns and text contents; the original folding method can be quickly unfolded and folded, which is convenient and safer at the same time; Powered by a replaceable lithium battery, it is capable of continuous warning tasks; the product is rugged and reliable, and can be used in harsh weather conditions.
The product can be widely used in traffic law enforcement, public safety, electric power repair, communication construction, municipal construction and other industries to provide users with convenient and effective security warning services.
Product specifications
| Expanded size | Storage size | Total weight | Protection leve | Windproof rating |
Expanded warning sign diameter 85cm | 55cm*53cm*25cm | About 15kg | IP55 | 8 levels of wind can bused normally |
| Operating temperatur | Working time | Deployment time | Display specifications | Warning ring |
| -20℃~+55℃ | -20℃~+55℃ | About 5 seconds | 48*48 dot | Red warning aura diameter 85cm |
| Warning distance | Device button | Battery | ||
| More than 200 meters | 1 power switch, 3 function buttons | 14.8 volts, 2A, 30W |
★When the product is not unfolded, the four-wheeled box type can be quickly pushed on the flat floor or the whole machine can be carried.
★The main LED display can display traffic signs and warning phrases, which are displayed alternately when displayed, and the display time can be set.
★The device has built-in high-definition camera recorder, which automatically works when booting. The recorder has 16G storage space, which can record the road ahead of the induction card and provide evidence for the second accident.
★After WIFI connection, you can set different scheme types and pictures and texts through the mobile phone APP.
★The desired pattern and logo content can be created and set by the background software.
★Supports common programs, special days, different months, different dates, different weeks, etc., multiple working methods and display contents.
★Alarm when the device is dumped to the remote control。
Equipment
When unfolding, the user presses the unfolding switch and pulls up the handle, and the upper half of the induction card is pulled up 180 degrees, and the four blades automatically flip open, and the bottom four legs automatically pop open at half angle. The user can then manually push the two support legs on one side into position, and the two support legs on the other side are simultaneously deployed into position to complete the device opening.
When closing, press down the folding switch on the back of the device, turn the upper part of the device down and close it, then close up the four blades and close the support legs to complete the device. (The device automatically shuts down when it is folded or dumped)
Power switch: After the system is pressed, the system starts up, and when it is pressed out, the system is turned off.
Function button: Close to the power button is the confirmation button, short press to confirm the display page, long press to switch between single page and program. The other two buttons are page up, one is page down.
