| Height | From 3 m to 25 m |
| Apply in | Highway, freeway, Airport ,seaport,plaza,stadium,square,highway,street way etc |
| Shape | Conical, octagonal, square, cylinder |
| Material | Usually Q345B/A572, Q235B/A36, Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, ST52 |
| Lamp power | 20 W- 400 W (HPS/MH) 220V (+-10%) /50Hz |
| Tolerance of the dimension | ± 2% |
| Surface treatment | Hot DIP galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
| Joint of Poles | Insert mode,inner flange mode,face to face joint mode |
| Design of pole | Against earthquake of 8 grade |
| Ultimate tensile strength | 490MPa-620 MPa |
| Thickness | 1 mm to 30 mm |
| Production Process | Raw material test → Cutting →Molding or bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Galvanization or powder coating ,painting →Recalibration →Thread →Packages |

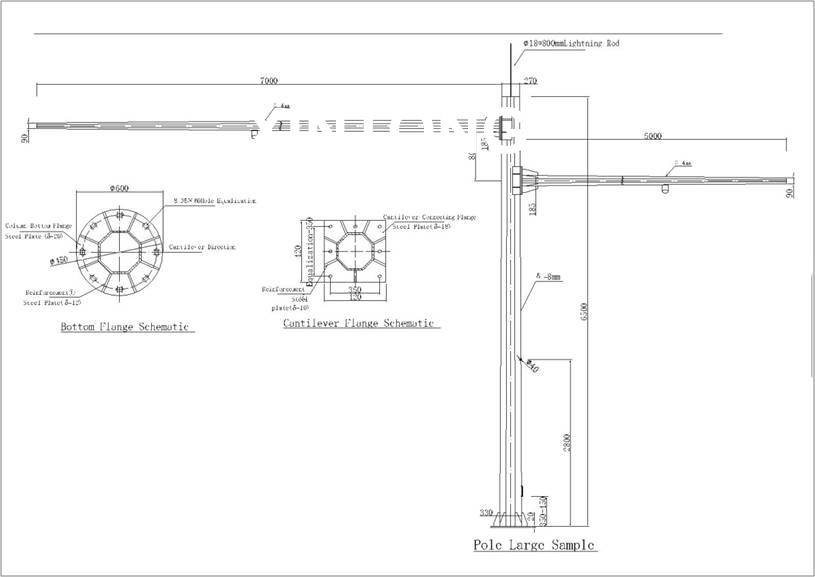

CAD Design
T-shape Traffic Light Pole Octagonal Traffic Light Pole
Manufacture Process
Pole Welding
80 experienced welders with the longest 20 years welding experience
Pole Polish Up
automatic polish process with manual inspection, assure of smoothness

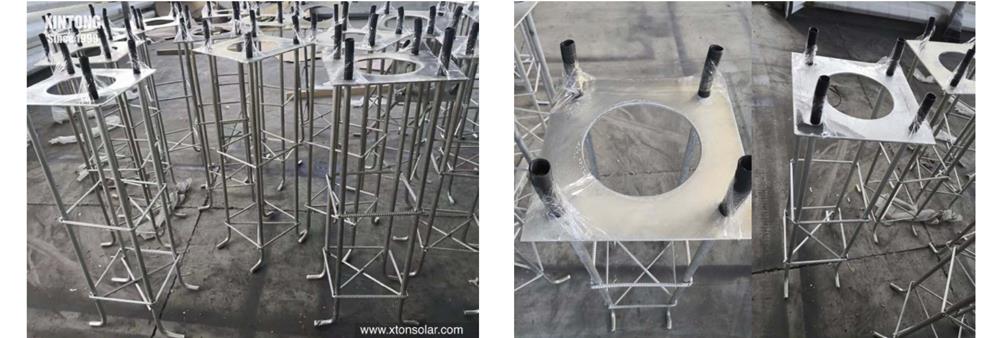

Anchor Bolts
provide cold / hot galvanized, foldable design to save delivery cost
Galvanized Pole Packing
packed with cotton and fixed with tap, provide full protection in delivery
Plastic Powder Coating
automatic powder process with 24 hours high-temperature fixation
Accessories Treatment
we produce all accessories by ourselves to have the control on quality
Workshop
XINTONG is the First company in Eastern China focused on traffic equipment, having 20 years' experience, covering 1/5 Chinese domestic market.
The pole workshop is the largest production workshop, with the best production equipment and experienced operators,to ensure the quality of products.
Plastic Spraying Workshop Pole Rolling Workshop
Flange Making Workshop Automatic Welding Workshop

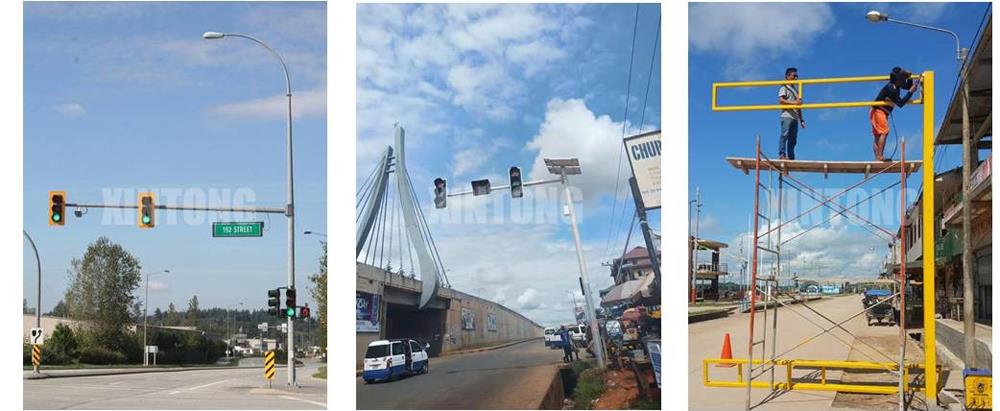

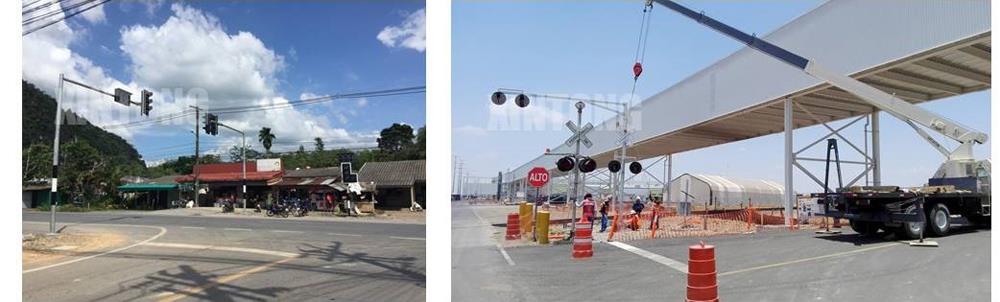

Project
In Thailand In Russia
In Canada In Nigeria In Palestine
